Weigh and Fill Machines

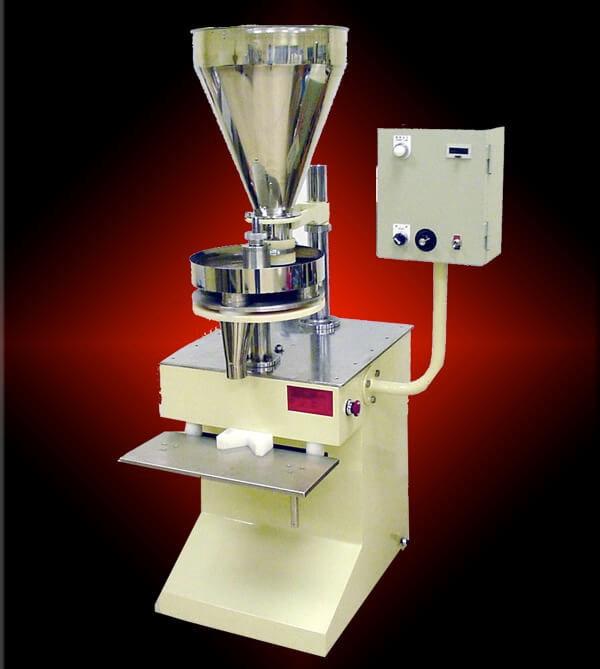

Volumetric Cup Filling System

      • Easily adjustable Cup Volume
      • Semi-Automatic Filling Operation
      • Stainless Steel Contact Parts and/or Plastic Cup Inserts
      • Variable Speed Motor
      • Controls Counter
      • Emergency Stop
      • Casters
      • 15v., 1ph., 10 Amps

Code

Model

Description

Hopper

10-1100-A

SP-100-A

For Approximately 2-8oz of Rice

30 Liters

10-1100-B

SP-100-B

For Approximately 8-16oz of Rice

30 Liters

10-1100-C

SP-100-C

For Approximately 16-32oz of Rice

50 Liters

10-1100-D

SP-100-D

For Approximately 1-5 lbs (2x) of Rice

50 Liters

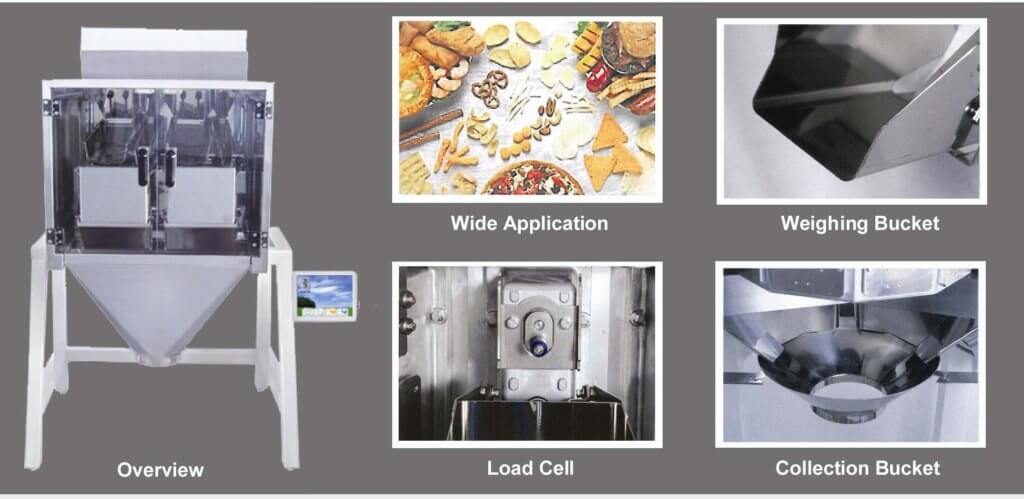

PCI Linear Net Weighing Filler

PCHP-241 B Manual / Semi-Auto Ribbon Coder

  • Linear Vibration Feeders precisely control the product in-feed to the hopper
  • Color Touch-Screen delivers user-friendly operation
  • Stainless Steel Parts and Framework
  • Advanced PLC System Control
  • Weighing Range: 100 – 3000g
  • Hopper Volume: 5000mL
  • Voltage: 220V / 50 or 60Hz / 1-phase
  • Dimensions: 1815mm x 1500mm x 1280mm (LxWxH)
  • UW2: 2 Head Net Weigher
  • UW4: 4 Head Net Weigher

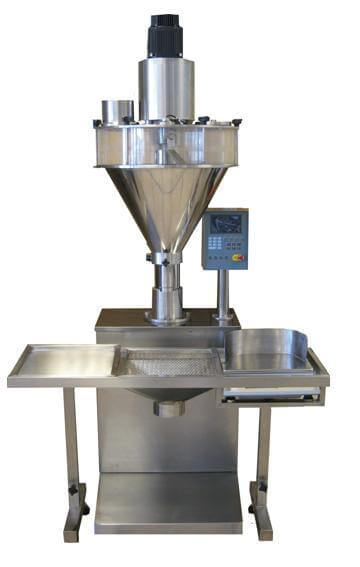

NEW: PCDCS-1B-111 Auger Filler

  • 10-3,000gm Fill
  • 10-30 per minute
  • Dust Proof Cover with clear view panel
  • Weigh Scale Check
  • 1 Set of Auger Tooling
  • Agitation with Fill or Continuous
  • Digital Electronic Counter Fill Control
  • Self-Diagnostic LED Display
  • Manual Foot Switch or Automatic Fill
  • 220 V, 3 PH, 60 Hz

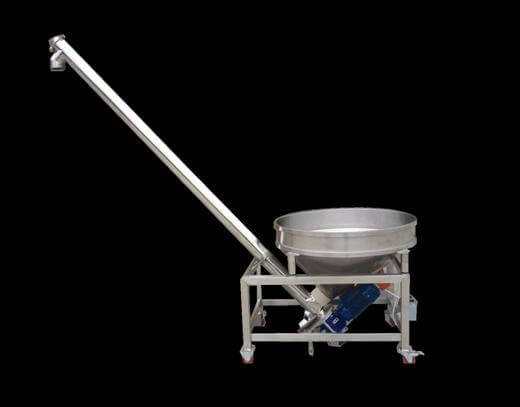

NEW: PC-GS-S2 (Short) Screw Conveyor

  • Stainless Steel Hopper, 100 Liter (50kg) capacity
  • Stainless Steel Screw Conveyor / Round Screw 102mm Diameter
  • Fixed Speed Motor / Hopper Vibrator
  • Auto-Sensor to control ON & OFF
  • 2 Cubic Meters (500 – 1,000 kg) per hour
  • Discharge Height 6 feet @ 45 degrees
  • 220 V, 1 PH, 50-60 Hz, 550 W
  • Approximate Size: 8.6′ H x 3′ x 7′ , 120 kg
