Form Fill And Seal Machine
Automatic Weighing/Filling & Packing for free flow powders, granules, bakery products, irregular objects, as well as liquids like icicles, juices, and sauces. Each Model is custom-tailored to your product. Call 305-887-1713 Today for more information!

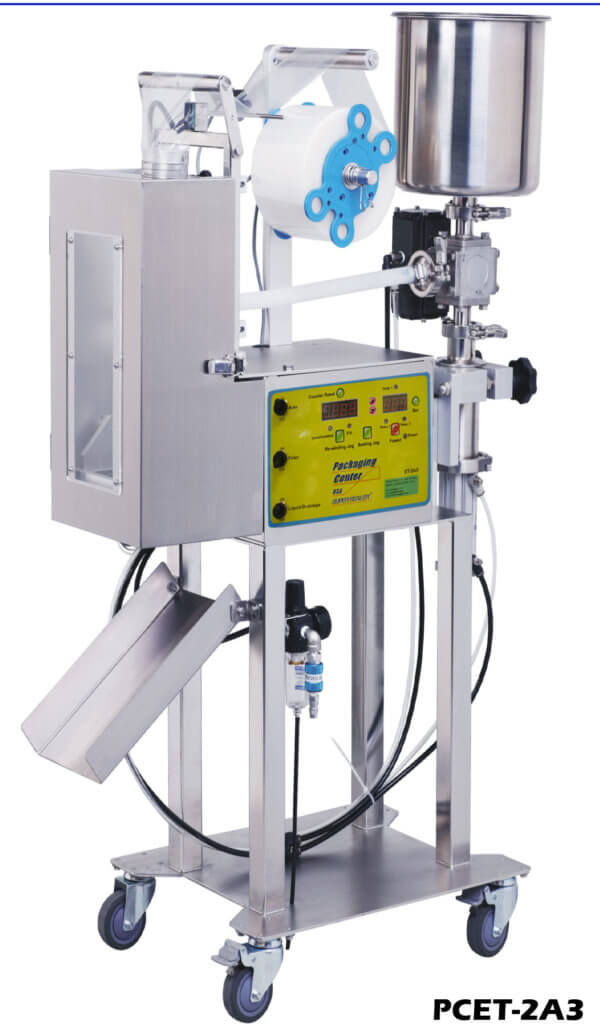

PCET-2A3 Fully Automatic Liquid Form Fill & Seal Machine
- Our Price: $7,995.00
- Automatically forms a 3-Side Sealed Bag
- Great for Sauces, Sauce Packets, Ketchup Packets, Honey, Hot Sauce, Icicles, Alcoholic Icicles, Hand Sanitizer, Gels, Juices, and much more!
- MAX Pouch Size: 2.5″ wide x 6″ long
- Speed: About 10-12 per minute (depending on volume and product)
- External Air Required: 3hp, 30 gallons
- Dimensions: 80cm x 45cm x 135cm
- Clear Films in Stock and Printed Films Available. Artwork is FREE!!
- Ribbon Coder for Expiration Date, Lot# is Optional

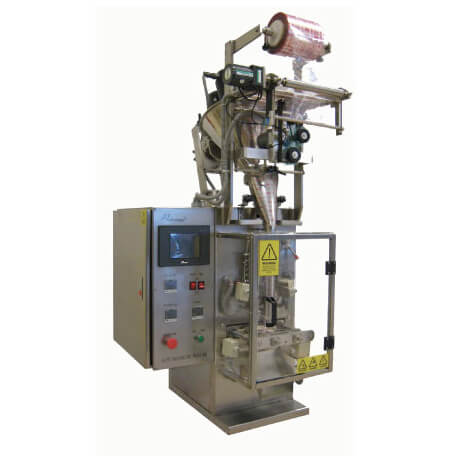

Vertical FFS - Heavy Duty Model
- Can product bags with widths from 2″ to 11″ and lengths from 3″ to 19″
- With Speeds up to 60 bags per minute
- Pre-Installed Software and 5.7″ Touch Screen for easy adaptation to different products and settings
- Interchangeable Forming Collar for a Quick Changeover
- Dual Belt Advancing System to facilitate reliable film run with length control
- Rice, Beans, Powders, Cheese Balls, Coffee, Liquids, and much more
PCPM-320
PCPM-420
PCPM-520
PCPM-620
Performance
Max Throughput (bags/min)
60
60
50
35
Voltage
220V / 50Hz / 1-phase OR on request
Power Consumption (kW)
2.5
2.5
2.6
2.8
Utilities
Max Packaging Volume (mL)
500
1000
2000
3000
Pouch Width (in)
1.5-5.75
2.2507.75
3-9.5
4-11.5
Pouch Length (in)
3-9.5
3-12
3-15.25
3-19.5
Specifications
Depth (in)
40
43
47
49
Width (in)
46
48
49
53
Height (in)
44
53
63
66
Weight (kg)
390
470
550
600
Vertical FFS - Smaller Stick Pack Powder Model
- Great for small powder applications such as drink powder mixes, sugar, and much more
- Color Touch-Screen delivers user-friendly operation
- Accurate pouch length control by quality step motor
- Accurate auger rotation by step motor
- Interchangeable auger screws and shafts for different volumes of product
3-9.5
Performance
Max Speed (cycles/min)
20-40
Voltage
220V / 50Hz / 1-phase
OR
110V / 60Hz / 1-phase
Voltage
Max Packaging Volume (mL)
1-50 (with auger/shaft change)
Pouch Width (in)
1-3
Pouch Length (in)
1.5-6
Specifications
Depth (in)
43
Width (in)
30
Height (in)
70

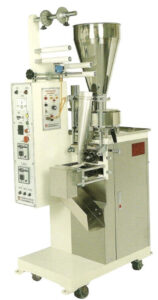

SP-Series Vertical FFS for Powders/Granules
For Packaging Powder or Granulated products such as coffee, peanuts, sugar, salt, and much more
SP-202
SP-203
SP-204
Bag Shape
Pillow Seal
60-160mm
4 Side Seal
Film Width
3 Side Seal
Bag Length
50-120mm
Packing Speed
40-80 bags/min
Volume
30g
Hopper Capacity
20L
Depth (in)
36"
Width (in)
24"
Height (in)
69"
Weight (kg)
300 kg
Power Consumption
1.35 kW
Voltage
110V / 220V 50/60Hz

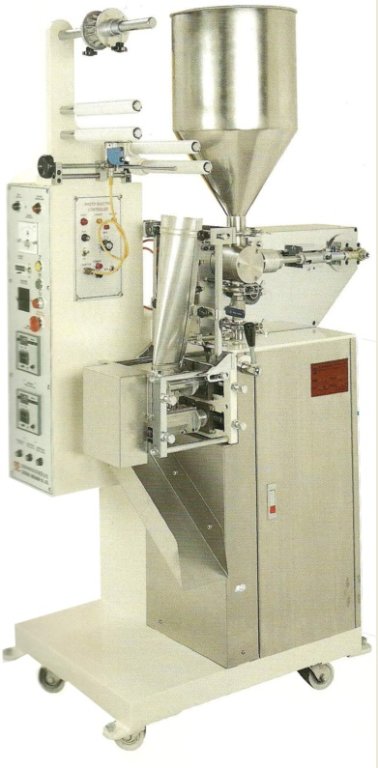

SP-L Series Vertical FFS for Liquids
- For Packaging Liquids and Pastes like shampoo, ketchup, juices, jellies, toothpaste, creams, honey, and much more
SP-203L
SP-204L
Bag Shape
3 Side Seal
4 Side Seal
Film Width
60-160mm
Bag Width
30-80mm
Bag Length
50-120mm
Packing Speed
40-80 bags/min
Volume
3-30cc
Hopper Capacity
20L
Depth (in)
39"
Width (in)
24"
Height (in)
69"
Weight (kg)
320 kg
Power Consumption
1.35 kW
Voltage
110V / 220V 50/60Hz

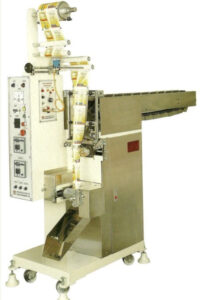

SP-C Series Vertical FFS with Infeed Conveyor
For Packaging Irregular Products such as brushes, bolts, nuts, pills, and much more

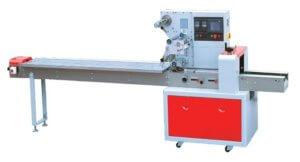

Horizontal Flow Wrapper
- For Packaging Bakery Products, Hardware, Candies, Biscuits, Breads, Ice Cream Sandwiches, and much more
- Length from 65-140mm, Width from 30-280mm, Height maximum of 90mm
- Pre-Installed Software and 5.7″ Touch Screen for easy adaptation to different products and settings
- Gas Flushing is available as an option
- Many Models Available Made to Fit Your Products
