Plastic Bag Ribbon Coder
One of the Most Important Aspects of a Flexible Pouch is its Ability to be Heat-Sealed. This enables the Product inside the Package to be Protected against the elements such as oxygen, moisture, as well as acting as a Tamper-Evidence. Packaging Center has a variety of sealers that come with our Standard One-Year Warranty, as well as all the parts in stock.

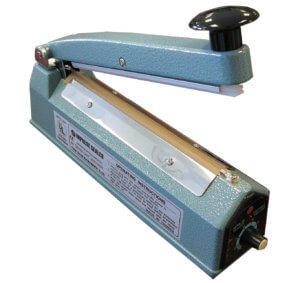

Hand Sealer without Cutter
Code
Model
Seal Length
Power
Seal Type
Weight
02-0103
TISH 200
8" X 2mm seal
180 W / 110V.
Flat
7 lbs.
02-0105
TISH 300
12" X 2mm seal
200 W / 110V.
Flat
11 lbs.
02-0107
TISH 400
16" X 2mm seal
240 W / 110V.
Flat
13 lbs.
02-0111
PC-20
20" X 2mm seal
280 W / 110V.
Flat
18 lbs.
Hand Sealer with Cutter
Code
Model
Seal Length
Power
Seal Type
Weight
02-0109-5
TISH 205C
8" X 5mm with Cutter
200 W / 110V.
Flat
10 lbs.
02-0115
TISH 305C
12" X 5mm with Cutter
200 W / 110V.
Flat
13 lbs.
02-0113
PC-16C
16" X 5mm with Cutter
240 W / 110V.
Flat
14 lbs.

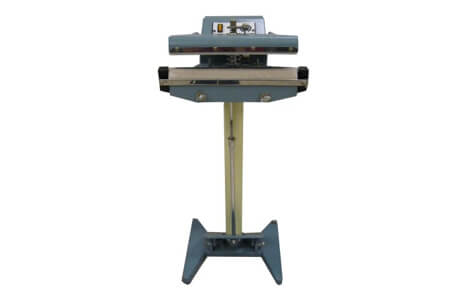

Foot Operated (Impulse = 5mm Flat Seal)
Code
Model
Seal Length
Power
Seal Type
Weight
02-0251
TISF 305
12" X 5mm
300 W / 110 V
Flat
50 lbs
02-0253
TISF 455
18" x 5mm
600 W / 110 V
Flat
-
02-0255
TISF 605
24" x 5mm
800 W / 110 V
Flat
-

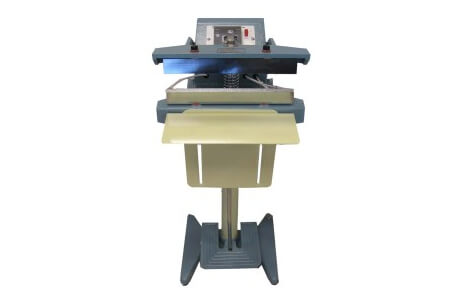

Foot Operated (Direct Heat = 12mm Crimp Seal)
Code
Model
Seal Length
Power
Seal Type
Weight
02-0207
THS 200
8" x 12mm
280 W / 110 V
Flat
-
02-0209
THS 300
12" x 12mm
280 W / 110 V
Flat
-
02-0211
THS 400
16" x 12mm
300 W / 110 V
Flat
-

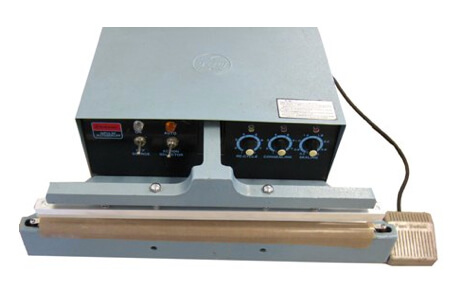

Semi-Automatic (Impulse)
Code
Model
Seal Length
Power
Seal Type
Weight
02-0303
TISA 455
18" x 5mm
1000 W / 110 V
Flat
-
02-0307
TISA 605
24" x 5mm
1200 W / 110 V
Flat
-
Model : BS-16

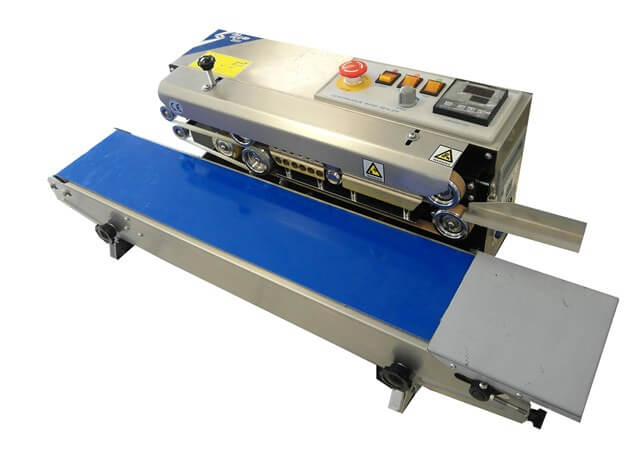

770 I Horizontal
Code
Model
Description
770 Horizontal
02-0610
Specifications: 115v, 60HZ 1PH 500W
Motor: D/C 50W
Temperature: 300 C (570 F)
Sealing Width: 8-12 mm (5/16-1/2")
Film Thickness: 40-200 Mic (200-800 gauge)
Speed: Max 12 meter/min (475"/min)
Measurements: 38" X 18" X 16" (88 lbs.)
810 Horizontal
02-0612
Ink Roller for Coding Expiration Date/Lot# on Each Bag Standard
810 Vertical
02-0613
Ink Roller for Coding Expiration Date/Lot# on Each Bag Standard

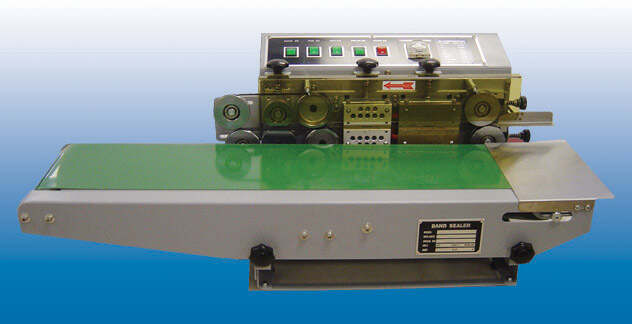

SYM 901 Horizontal
SYM 905 Vertical
Model
Code
Description
Size of Bags
Weight

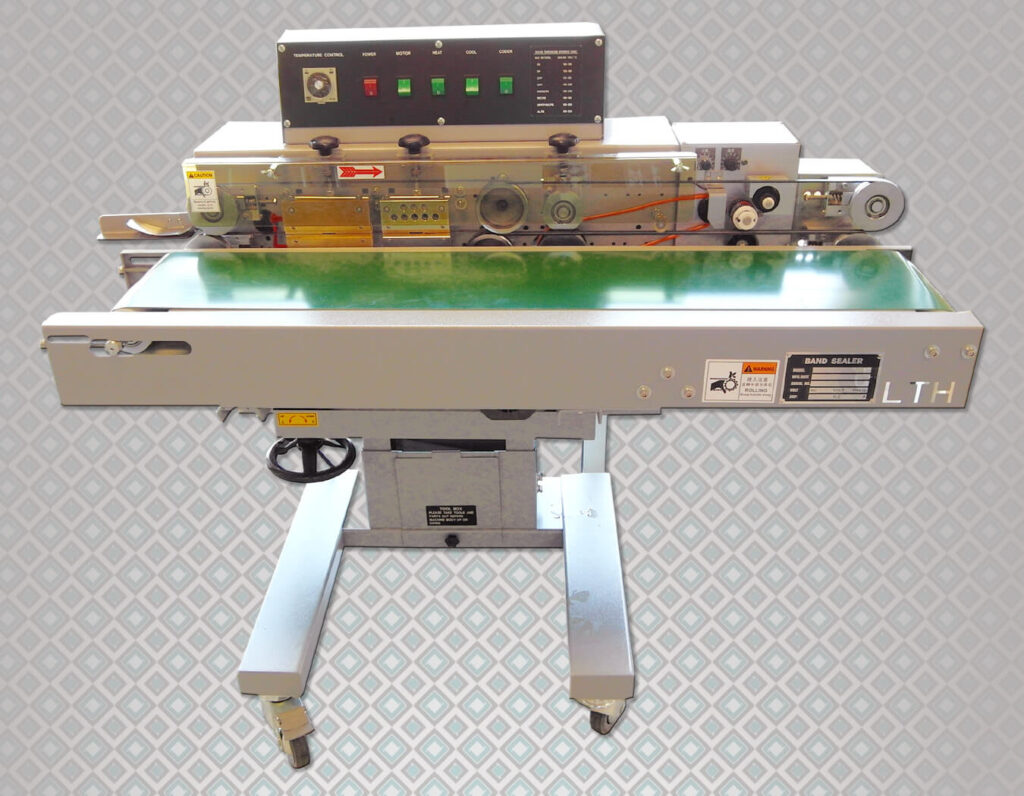

SYM 901 Horizontal
02-0601
Sealing Thickness: 0.2mm - 0.5mm, combine
Sealing Width: 3mm or 10 mm, pre-set
905: 30 cm x 10-40 cm
901: 25 cm x 30 cm
903: 25 cm x 30 cm
375 lbs

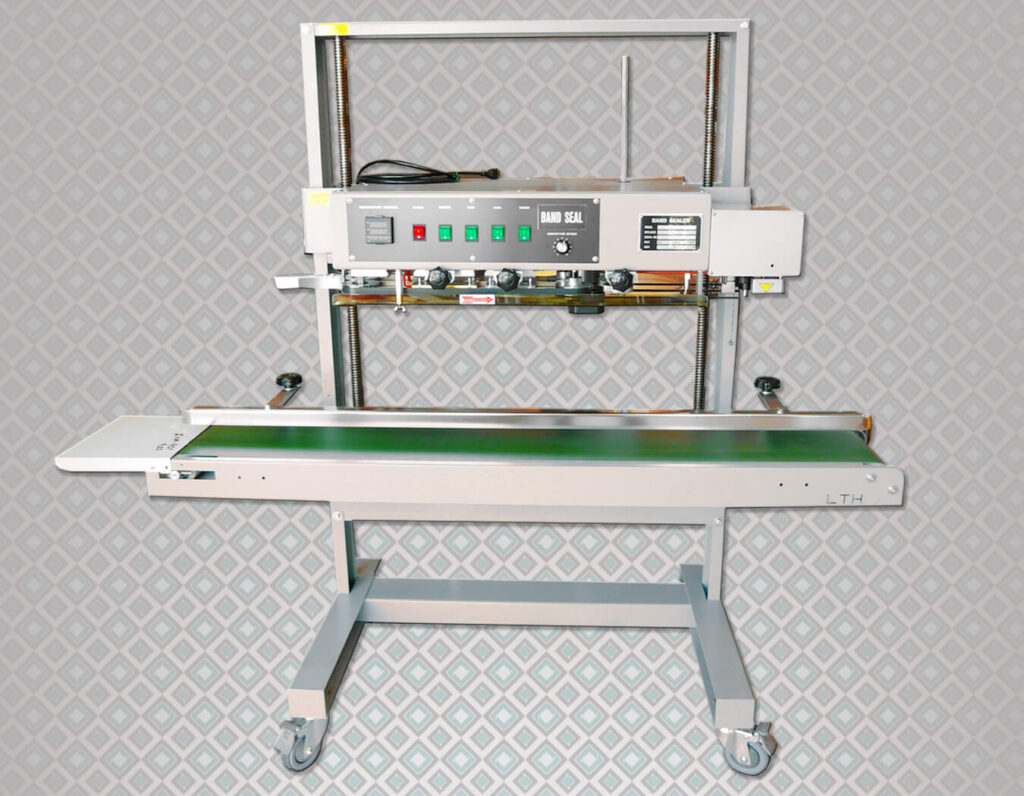

SYM 905 Vertical
02-0603
Sealing Thickness: 0.2mm - 0.5mm, combine
Sealing Width: 3mm or 10 mm, pre-set
905: 30 cm x 10-40 cm
901: 25 cm x 30 cm
903: 25 cm x 30 cm
375 lbs
