Commercial Vacuum Sealer Machine

Vacuum Packaging is the process of removing air around a food product and then sealing that product in an impermeable package.

PC 280 Table Top

Code

04-1128

Chamber

360 x 385 x 95mm
14.1" x 15.1" x 3.7"

Lid

Clear Dome

Seal Bar

1 X 300
1 X 11.8"

Vacuum Capacity

6 m3/h

Gas Flush

No

Cycle Time

10-30 sec

Power

110V / 1 ph / 60 Hz / 12 amps

Machine Size

380 X 457 X 406mm
15" x 18" x 16"

Machine Weight

52 kg (115 lbs)

See it in Action

Fully Automatic Cup Filling & Sealing Machine

See it in Action

Fully Automatic Cup Filling & Sealing Machine

PC-420 Table Top

Code

04-1141

Chamber

505 x 490 x 75+105mm
19.8" x 19.2" x 3"+4"

Lid

Clear Dome

Seal Bar

1 X 450 x 10mm
1 X 17.7"

Vacuum Capacity

21 m3/h

Gas Flush

Optional

Cycle Time

10-30 sec

Power

110V / 1 ph / 60 Hz / 16 amps
10 amp 0.9kw

Machine Size

508 x 533 x 533mm
20" x 21" x 21"

Machine Weight

100 kg (220 lbs)

PC-520-LR

Code

04-1153

Chamber

600 x 600 x 75+102mm
23.6" x 23.6" x 3"+4"

Lid

Clear Dome

Seal Bar

2 X 540 X 10mm
2 X 21.3"

Vacuum Capacity

21 m3/h

Gas Flush

Optional

Cycle Time

10-30 sec

Power

110V / 1 ph / 60 Hz / 16 amps
20 amp 1.5kw

Machine Size

615 x 756 x 916mm
24" x 30" x 36"

Machine Weight

140 kg (310 lbs)

PC-680-LR

Code

04-1158

Chamber

900 x 665 x 180mm
35.5" x 26" x 7"

Lid

Metal Dome

Seal Bar

2 X 520 X 10mm
2 X 20.5"

Vacuum Capacity

40 m3/h

Gas Flush

Optional

Cycle Time

10-30 sec

Power

230V / 3 ph / 60 Hz / 8 amps

Machine Size

900 x 665 x 1000mm
35" x 26" x 39"

Machine Weight

227 kg (500 lbs)

**PC-860 Available

Code

04-1163

Chamber

808 X 730 X 200mm
32 X 29 X 8"

Lid

Metal Dome

Seal Bar

4 X 640mm, 560 apart
4 X 25.2", 22"

Vacuum Capacity

63 m3/h (Busch Pump 3hp equivalent)

Gas Flush

Optional

Cycle Time

10-30 sec

Power

230V / 3 ph / 60 Hz / 18 amps
14 amp 3kw

Machine Size

1575 X 915 X 1117mm
62 X 36 X 44"

Machine Weight

412 kg (908 lbs)

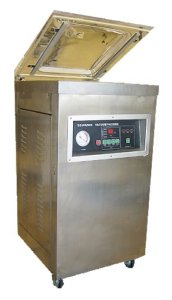

DZ-400

Code

Economic Special
Single Chamber
Floor Model

Chamber

16.5" x 17.3" x 3.9"

Lid

Clear Dome

Seal Bar

2" x 15.75"

Vacuum Capacity

10 m3/h

Gas Flush

No

Cycle Time

10-30 sec

Power

220V 50/60Hz 1phase

Machine Size

Console Model

Machine Weight

N/A
